FENIX HL18R, 400lm / 76m, Black, Rechargeable Headlamp

Product detailed description

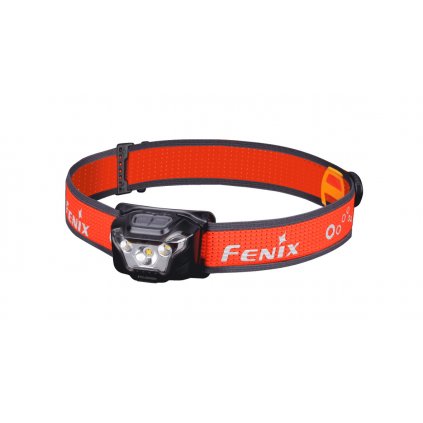

FENIX HL18R, Rechargeable Headlamp

The compact rechargeable Fenix HL18R headlamp offers a light output of up to 400 lumens (ANSI) and a beam distance of up to 76 meters. It is powered by a replaceable lithium-polymer battery with a capacity of 1300 mAh, which charges via a micro-USB connector directly in the headlamp. The battery can be removed and replaced with three standard AAA batteries in an emergency (they cannot be charged in the headlamp). The light source is a modern LED Cree XP-G3 with a warmer light tint, located in the main reflector. Two white LED Everlight 2835 provide additional lighting, creating a wide and very smooth light beam.

There are a total of 7 performance modes available, including an SOS flash mode for emergency situations. The headlamp is also equipped with a runtime extension function. During extended use in 400, 130, 70, and 30 lumen modes, the headlamp gradually reduces output in small steps to achieve longer lighting time.

The headlamp's advantages include good water and dust resistance corresponding to the IP66 standard. The headband is perforated and equipped with reflective elements, ensuring good all-around visibility when running on the road. Weighing only 80 grams, the Fenix HL18R serves well as a running headlamp and for camping, hiking, and other outdoor activities.

All headlamp parameters (light output, battery runtime, waterproofness, beam distance, and impact resistance) are measured in accordance with the standard.

Fenix HL18R Headlamp Specifications

• Equipped with a powerful white LED Cree XP-G3 with a warmer light tint and two auxiliary LED Everlight 2835, both with a lifespan of 50,000 hours.
• Main reflector modes:
  • Li-pol battery 1300 mAh: 400 lumens (8.5 hours) -> 130 lumens (12.5 hours) -> 70 lumens (17.5 hours) -> 30 lumens (48 hours)
  • 3x AAA batteries: 400 lumens (9 hours) -> 130 lumens (14 hours) -> 70 lumens (22 hours) -> 30 lumens (48 hours)
• Auxiliary LED modes with a wide beam:
  • Li-pol battery 1300 mAh: 30 lumens (54 hours) -> 4 lumens (145 hours) -> SOS flashing 30 lumens (72 hours).
  • 3x AAA batteries: 30 lumens (56 hours) -> 4 lumens (150 hours) -> SOS flashing 30 lumens (80 hours).
• Main light beam with a range of 76 meters (1466 cd), auxiliary LED range 10 meters.
• Electronics with extended runtime function and reverse battery insertion protection.
• Uses a lithium-polymer battery with a capacity of 1300 mAh.
• Can be powered by 3x AAA batteries. Both disposable alkaline and rechargeable NiMH can be used. (Cannot be charged in the headlamp).
• Charging via micro USB connector.
• Convenient operation with two switches.
• The headlamp can be tilted in the holder to set the desired lighting direction (range 60°).
• Made of durable plastic and aircraft-grade aluminum alloy.
• Headband with reflective elements increases passive safety.
• Impact-resistant to drops from a height of 1 meter.
• Dimensions: 5.77 cm x 4.23 cm x 3.7 cm.
• Weight 80 grams (including battery).
• Waterproof and dustproof according to IP66 standard (resistant to strong water jets from all directions).
• Package includes headband, Li-pol battery 1300 mAh, and USB charging cable.
• An APB-20 case can be purchased for the headlamp.

Usage

The main reflector is turned on and off by pressing the right button for 0.5 seconds, and the auxiliary LEDs are turned on and off by holding the left button. The headlamp always turns on in the lowest mode, and you can switch to other power levels at any time during operation by pressing the appropriate button. The main reflector and auxiliary LEDs cannot be activated simultaneously.

Battery charge status indication - A short press of the left button (the headlamp must be off) activates the LED battery charge status indicator on the bottom of the headlamp. Four lit LEDs mean the battery is charged to more than 80%, three lit 60-80%, two 40-60%, one 20-40%, and one flashing indicates the battery is charged to less than 20%.

Control buttons can be locked to prevent accidental activation, e.g., during transport in luggage - hold both buttons pressed for 3 seconds. To unlock, hold both buttons again for 3 seconds.

Overheat protection - During extended operation in turbo mode, the headlamp gradually reduces output to prevent overheating.

Charging

• Flip open the rubber cover of the micro USB connector on the bottom of the headlamp and connect it to a computer, power bank, wall adapter, or car adapter using the included USB cable. Any mobile phone charger with a micro USB connector can also be used for charging.
• During charging, the four indicator LEDs on the bottom light up in sequence, and all remain lit when fully charged.
• Charging a fully depleted battery takes approximately 2.5 hours.
• The battery used does not suffer from a memory effect, so the headlamp can be recharged at any time.
• Thoroughly seal the USB connector cover after each charge.
• The headlamp can be turned on during charging, but only in the lowest mode.

Warnings

• Do not disassemble sealed parts yourself, as this will void the warranty.
• Never use differently charged AAA batteries or batteries with different capacities.
• Always carefully check that the batteries are inserted into the headlamp with the correct polarity.
• If the headlamp blinks, does not switch to higher power modes, or does not turn on, it may be due to one of the following reasons:
  • The battery is almost depleted – recharge it.

Warranty

Five-year warranty on the headlamp, two-year warranty on the battery.
